Light Booths
Standarized light sources for color assessment.
Light sources: Daylight D65, TL84, Cool White, UV, F/A, U30
Our Amazing Clients！
Vteke Light Booths
There is a wide selection of light sources available, including Daylight D65, D50, Cool White Fluorescent, TL84, TL83, U30, UV, Incandescent A, F, U35, and LED. Vteke light booths provide globally standardized color viewing conditions that effortlessly cater to the diverse color evaluation requirements of clients worldwide. With our reliable solutions, you can trust us to consistently ensure accurate color representation for your products.
- All light sources are pre-installed and ready to use upon power-up.
- One-touch switching between various light sources for easy operation.
- Automatic recording of usage duration for each set of light sources, preventing inaccurate color assessment due to aging lamps.
- Available in three sizes: 60cm, 120cm, and 90cm, catering to different sample testing needs.
- Competitive pricing, making the lightbox the most cost-effective tool among all color deviation inspection instruments.
Vteke light booths are economical and practical tools for color inspection. With a metamerism function, professional color-rendering light sources, and a matte gray interior for excellent lighting uniformity, they ensure reliable performance. Operating them is straightforward: simply place the product side by side with the client’s standard sample in the booth, using the same light source. This allows you to directly assess if the product’s color and appearance meet the required standards. They are essential for QC professionals, ideal for industries with high color requirements such as textiles, clothing, dyeing, painting, coatings, and printing.
Advantages
- Metamerism capability.
- Versatile light sources and optional Munsell N7 or N5 interior wall color.
- Energy-efficient, instant-on, and easy installation.
- One-year warranty with free shipping (excluding user damage).
- Optional spare lamp tubes and 45-degree angled table.
- QC quality inspection, laboratory color analysis, customer inspection factory, and on-site color checking during production.
Applications
Textiles, clothing, dyeing, printing, plastics, pigments, paints, inks, coatings, photography, and more industries that need accurate colors.
Specifications
The main differences between these models are the light source, size, and weight.
Notice: Due to varying regulations in different regions, some countries no longer allow the use of fluorescent lights. If you need an all-LED light booth, please choose either the CAC-4 or CAC-6 model and inform us.
Models | CAC-4 | CAC-5 | CAC-6 | CAC-6B |
| Configured light sources | D65, TL84, UV, F/A | D65, TL84, UV, F/A, CWF | D65, TL84, UV, F/A,CWF,U30 | D65, TL84, UV, F,CWF,U30/TL83 |
| Dimensions (H x W x D) | 71 x 41 x 57 (cm) | 71 x 41 x 57 (cm) | 71 x 53 x 57 (cm) | 131 x 60 x 80 (cm) |
| Viewing Area (H x W x D) | 68 x 38.5 x 36 (cm) | 68 x 38.5 x 36 (cm) | 68 x 51 x 36 (cm) | 128 x 59 x 59 (cm) |
| Voltage | 110 or 230 | 110 or 230 | 110 or 230 | 110 or 230 |
| Daylight D65 6500K (2pcs) | ✓ | ✓ | ✓ | ✓ |
| “F” approximating ‘A’ Home (4pcs) | ✓ | ✓ | ✓ | ✓ |
| TL84 store (2pcs) | ✓ | ✓ | ✓ | ✓ |
| UV Ultraviolet (1pc) | ✓ | ✓ | ✓ | ✓ |
| Cool white fluorescent (2pcs) | ✓ | ✓ | ✓ | |
| U30 Warm white fluorescent (2pcs) | ✓ | ✓ | ||
| Cabinet Color | Neutral matte gray | Neutral matte gray | Neutral matte gray | Neutral matte gray |
| Package size (H x W x D) | 77.5 x 48 x 30.5 (cm) | 77.5 x 48 x 30.5 (cm) | 77.5 x 60.5 x 30.5 (cm) | 141 x 32 x70 (cm) |
| Net weight | 24kg | 26kg | 30kg | 60kg |
| Gross weight | 28kg | 28kg | 35kg | 70kg |
Light sources description:
D65 – International standard Artificial Daylight, color temperature is 6500K. CIR is 98. Specified for most applications where color consistency and quality are required. High conformance to ISO 23603 – CIE S 012/E specifications for accurate color matching.
D50 – Color Proof “Artificial Daylight”for graphic and photographic applications., color temperature is 5000K. CIR is 98.
TL84 – Applicable for stores in China, Japan and Europe, color temperature is 4000K,CIR is 85.
CWF – (Cool White Fluorescent) American Standard, color temperature is 4150K, CIR is 62. TL83 – ( Warm White Fluorescent ), American Standard, color temperature is 3000K, CIR is 85
U35 – One of an American light source , color temperature 3500K. CIR is 85
F – “Sun-setting Light Yellow” incandescent light source (imitation of sunset), Required by BS 950: Part 1 as a test for metamerism (approximating CIE Illuminant ‘A’ ) color temperature 2700K. CIR is 100
A – Tungsten Halogen Lighting (CIE Illuminant ‘A’ ). This represents incandescent A (inc-A) with a colour temperature of 2856K. CIR is 100 Typical light source used to check for metamerism.
UV– Ultraviolet Blacklight. Used to detect the presence of Optical Brightening Agents or Fluorescent dyes. Therefore it is useful when assessing white and Fluorescent shades to check the level present and its evenness.
D75 – International standard Artificial Daylight, color temperature is 7500K,CIR is 96. High CIE specifications for accurate color matching.
LED – GE LED11ET8/G/2/940: 4000K, CRI 90+

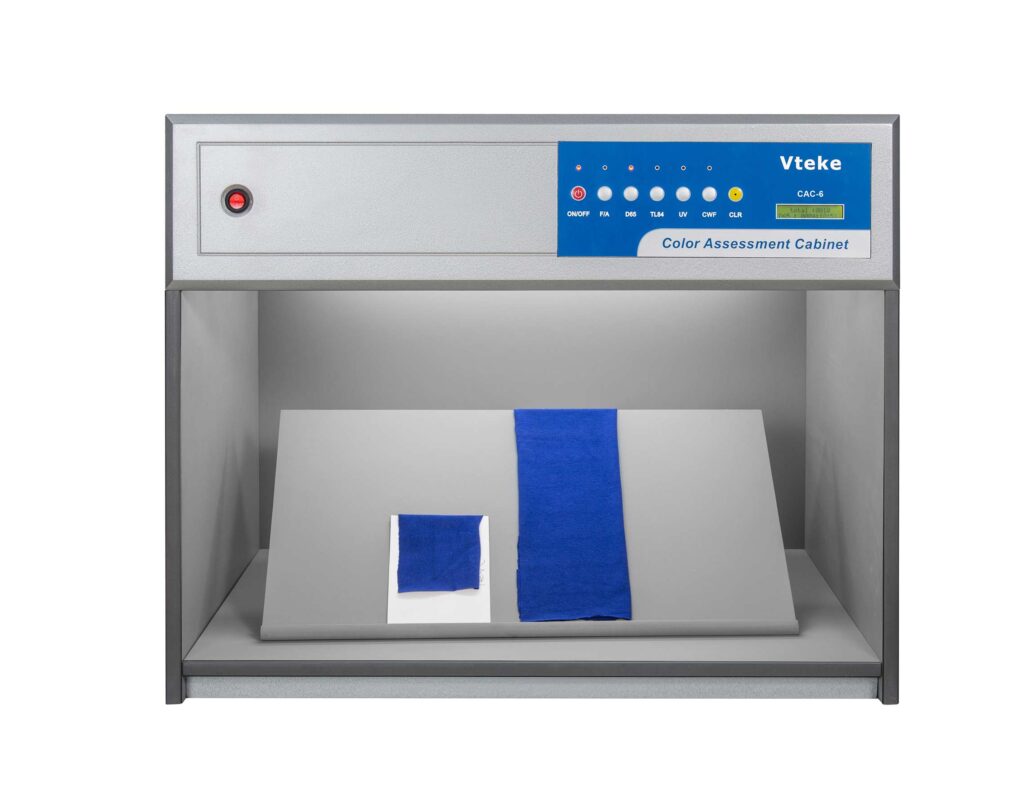

Customized light booths & Accessories 45° angle table
The 45-degree angle is an ideal viewing angle for assessing samples, particularly for color fastness evaluation in the textile industry.
Replacement Lamps. GE, LED, Philips, Osram, Sylvania, Ushio, Tungsram.
We offer customizable dimmable light booths, allowing you to adjust the brightness of the light sources. These are commonly used in the camera industry.
The interior walls of the light booths can be painted in Munsell N7 or N5. Additionally, we also offer metal light booths if required.
Transportation, Installation, and After-Sales Support
Vteke CAC series light booths CAC-4, CAC-5, CAC-6, and CAC-6B are always in stock and ready to ship. We offer flexible shipping options through DHL, FedEx, UPS, or sea and air freight. You can either let us handle the shipping arrangements or provide your preferences.
Installation is easy: first, assemble the base, then simply tighten 9 screws. The screws are prepared in the packaging. Finally, place the top cover with the light tubes directly onto the base.
Our light booths come with a one-year warranty, excluding light tubes and damage caused by mishandling. If you experience any quality issues within the first year, we’ll promptly arrange a replacement at no extra cost. We’ll also cover the shipping fees for the replacement.

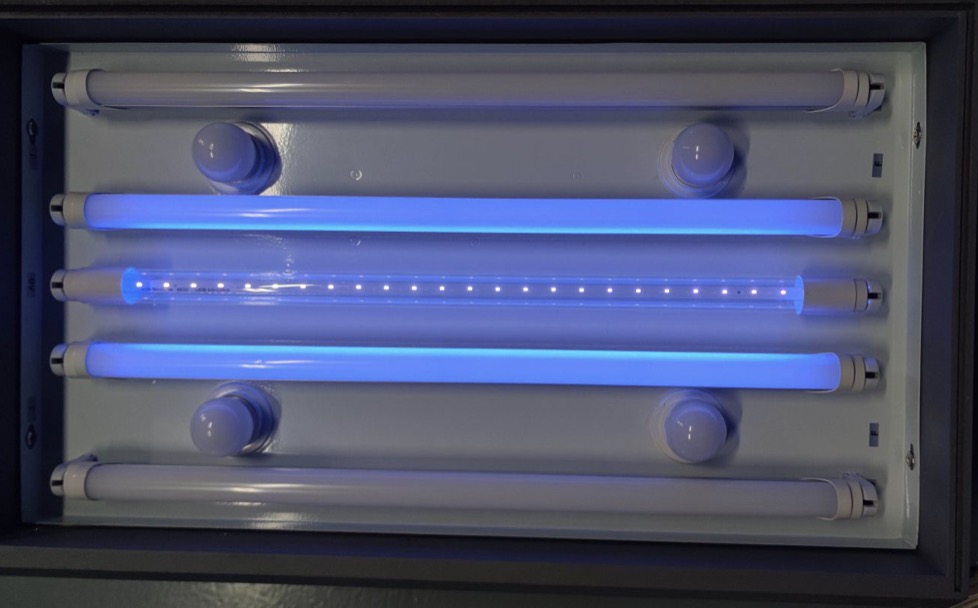

With LED Tubes
With Fluorescent Tubes
Nearly 15 Years of Experience
We have clients with various business all over the world. Listen to what they’ve said about us.

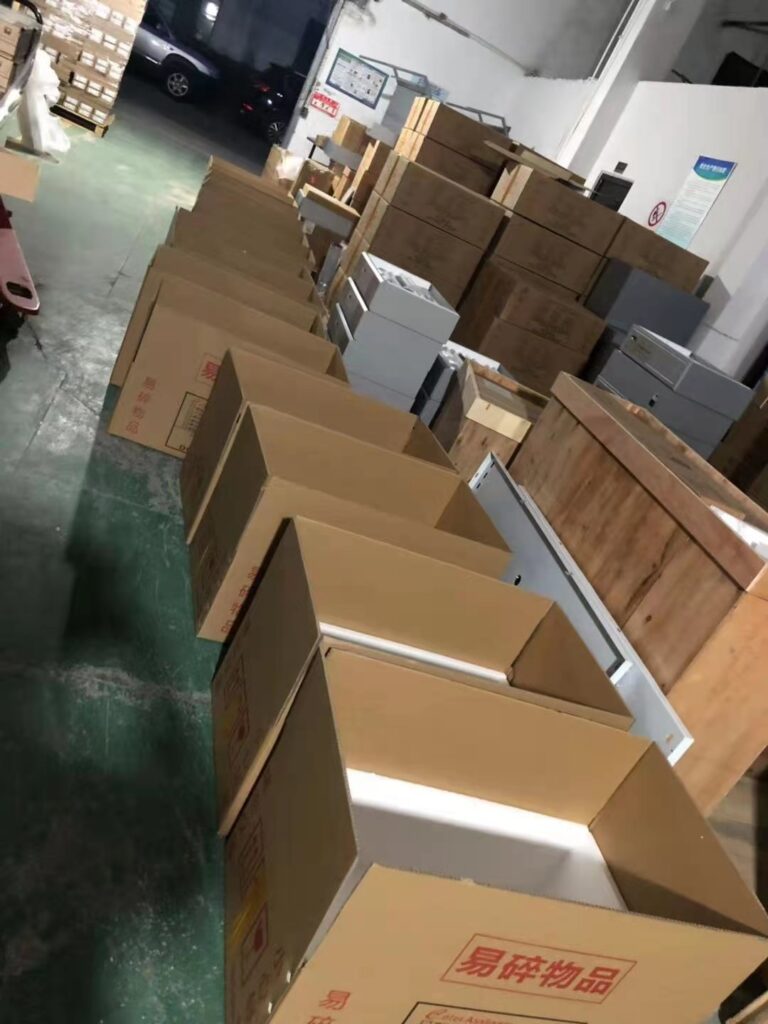

Packages
Packages
Over 15 years of manufacturing experience
Light booths workshop
Frequently Asked Questions
How to choose a light booth?
Choose the same as your customers, it is essential to have consistent light sources.
Do you have the 6500K light booth?
Yes, we have it. A 6500K light booth refers to a light booth with daylight D65 light sources, providing a color temperature of 6500K.
What should I be careful about when using it?
No, simply place it on a table for use.
What if the product gets damaged during transportation?
We will arrange a replacement shipment at our expense.
When to replace light tubes? How to buy?
After 2000 hours of use or if there are any issues. Contact us and for faster service, please send us a photo of one of the end of the light tube with the printed markings.
Can it be customized?
Yes, customization is available. OEM & ODM too.
Why do i need a light booth?
Colors can look different under different light sources. For example, the same color may appear slightly different on a cloudy day, during rainy weather, indoors, outdoors, or under different lighting conditions used by different clients. This raises the question of which light source should be considered as the standard reference. However, a color light booth can help solve this issue.
Metamerism is an optical phenomenon where two colors may seem to match under one light source but appear different under another light source. It’s like when you have a shirt that appears perfectly matched under one type of lighting, but when you step outside or view it under a different light, it suddenly appears to be a slightly different color. Metamerism can pose challenges in maintaining color consistency and achieving accurate color representation across various lighting conditions. By using a light booth, you can identify and address any metameric effects, ensuring consistent and reliable color evaluation.
Vteke light booths are known by various names, such as light boxes, viewing booths, color assessment cabinets, color matching booths, and more. Contact us to find the right one for your needs.
