Color Assessment Cabinets

Standarized light sources for quality control.

Light sources: Daylight D65 or D50, TL84, Cool White, UV, F/A, U30 or U35

Get a Quote

Discover Our Standard Light Source Series for Visual Assessment

From design and material procurement to prototyping, mass production, and sales, how can you ensure global color consistency? Our color assessment cabinets are specially designed for quality control, providing a standard light environment to guarantee color uniformity in every production stage and region. Suitable for QC quality inspection, laboratory color analysis, customer factory audits, and on-site color checks during production processes, among other applications.

All lamps in our color assessment cabinets are pre-installed, and the voltage and plugs are configured to your standards!

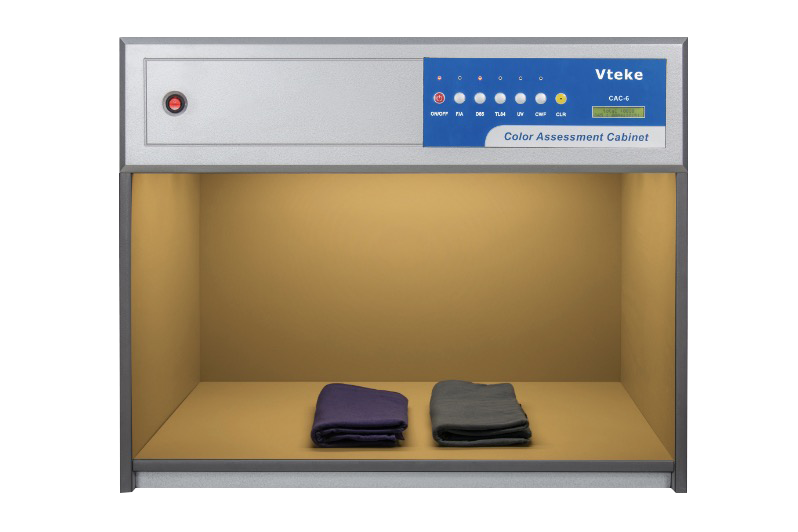

CAC-5

  • Daylight D65, TL84, CWF, UV, F or A
  • Width: 60cm, 2feet, 600mm

CAC-4

  • Daylight D65, TL84, UV, F or A
  • Width: 60cm, 2feet, 600mm
  • Fluorescent or LED

CAC-6

  • Daylight D65, TL84, CWF, U30, UV, F or A
  • Width: 60cm, 2feet, 600mm
  • Fluorescent or LED
Get a Quote

CAC-6B

  • Daylight D65, TL84, CWF, U30, UV, F or A
  • Width: 120cm, 4feet, 1200mm

Customized LED CAC

Equipped with Walmart-specified LED tubes, LED8ET8/G/2/840.

Dimmable custom

  • D65 or D50, TL84, CWF, U30, U35, UV, F or A
  • Width: 90cm, 900cm
Get a Quote

Our Amazing Clients！

Cost-Effective: Get Correct Color!

The Vteke color assessment cabinet is a cost-effective tool for evaluating colors. Simply place the standard and test samples side-by-side inside the booth, and you can immediately see if the color matches the standard, helping to reduce unnecessary rework and waste. It’s especially useful in industries like textiles, apparel, dyeing and printing where color accuracy is crucial. The color assessment cabinet provides a standardized international lighting environment, ensuring that factors like differing office lighting, indoor or outdoor settings, weather conditions, and even varying global locations do not lead to inconsistencies and color discrepancies, thus improving efficiency and avoiding color mismatch!

Get a Quote

Features

  • All light sources are pre-installed and ready to illuminate upon powering up.
  • Features metamerism capability with one-touch switching between multiple light sources for convenient operation.
  • Automatically records the usage duration of each group of light sources to prevent inaccurate color assessments due to bulb aging.
  • Available in three sizes: 60cm, 120cm, and 90cm, to meet varying sample inspection needs.
  • The interior wall color is a light-absorbing medium gray to prevent unwanted light reflection on samples, with Munsell N7 or N5 available as options.
  • 45-degree worktable and spare lamps are available as optional accessories.
  • Complies with CE standards.

Applications

Textiles, clothing, dyeing, printing, plastics, pigments, paints, inks, coatings, photography, and more industries that need accurate colors.

Testimonials

The package was securely wrapped, and everything arrived in perfect condition. Delivery was quick, and the voltage and plug were exactly as I specified. It’s exactly what we needed for our customer’s factory inspection.

5/5

Mr. Christian

Received the color assessment cabinet and I’m impressed with the quality; the materials are quite sturdy. It’s perfect for color matching fabric samples, allowing for consistent color evaluation both day and night. Very convenient!

5/5

Shelly Barns

The lamps were pre-installed by the manufacturer, and we installed the base ourselves—it was very simple, just a few screws. Our factory technicians report that the color accuracy is spot on, and we’ve already bought two units.

5/5

Jacob Luke

Specifications

 CAC-4CAC-5CAC-6CAC-6B
Configured light sourcesD65, TL84, UV, F/AD65, TL84, UV, F/A, CWFD65, TL84, UV, F/A,CWF,U30D65, TL84, UV, F,CWF,U30/TL83
Dimensions (H x W x D)71 x 41 x 57 (cm)71 x 41 x 57 (cm)71 x 53 x 57 (cm)131 x 60 x 80 (cm)
Viewing Area (H x W x D)68 x 38.5 x 36 (cm)68 x 38.5 x 36 (cm)68 x 51 x 36 (cm)128 x 59 x 59 (cm)
Voltage110 or 230110 or 230110 or 230110 or 230
Daylight D65 6500K (2pcs)✓✓✓✓
“F” approximating  ‘A’ Home  (4pcs)✓✓✓✓
TL84 store (2pcs)✓✓✓✓
UV Ultraviolet (1pc)✓✓✓✓
Cool white fluorescent (2pcs) ✓✓✓
U30 Warm white fluorescent (2pcs) ✓✓
Cabinet Color

Neutral matte gray

Neutral matte grayNeutral matte grayNeutral matte gray
Package size (H x W x D)77.5 x 48 x 30.5 (cm)77.5 x 48 x 30.5 (cm)77.5 x 60.5 x 30.5 (cm)141 x 32 x70 (cm)
Net weight 24kg26kg30kg60kg
Gross weight 28kg28kg35kg70kg

Light sources description:

D65 – International standard Artificial Daylight, color temperature is 6500K. CIR is 98. Specified for most applications where color consistency and quality are required. High conformance to ISO 23603 – CIE S 012/E specifications for accurate color matching.

D50 – Color Proof “Artificial Daylight”for graphic and photographic applications., color temperature is 5000K. CIR is 98.

TL84 – Applicable for stores in China, Japan and Europe, color temperature is 4000K,CIR is 85.

CWF – (Cool White Fluorescent) American Standard, color temperature is 4150K, CIR is 62. TL83 – ( Warm White Fluorescent ), American Standard, color temperature is 3000K, CIR is 85

U35 – One of an American light source , color temperature 3500K. CIR is 85

F – “Sun-setting Light Yellow” incandescent light source (imitation of sunset), Required by BS 950: Part 1 as a test for metamerism (approximating CIE Illuminant ‘A’ ) color temperature 2700K. CIR is 100

A – Tungsten Halogen Lighting (CIE Illuminant ‘A’ ). This represents incandescent A (inc-A) with a colour temperature of 2856K. CIR is 100 Typical light source used to check for metamerism.

UV– Ultraviolet Blacklight. Used to detect the presence of Optical Brightening Agents or Fluorescent dyes. Therefore it is useful when assessing white and Fluorescent shades to check the level present and its evenness.

D75 – International standard Artificial Daylight, color temperature is 7500K,CIR is 96. High CIE specifications for accurate color matching.

LED – GE LED11ET8/G/2/940: 4000K, CRI 90+.

Packages

Over 15 years of manufacturing experience

Light booths workshop

Frequently Asked Questions

How to choose a light booth?

Choose the same as your customers, it is essential to have consistent light sources.

Do you have the 6500K light booth?

Yes, we have it. A 6500K light booth refers to a light booth with daylight D65 light sources, providing a color temperature of 6500K.

What should I be careful about when using it?

No, simply place it on a table for use.

What if the product gets damaged during transportation?

We will arrange a replacement shipment at our expense.

When to replace light tubes? How to buy?

After 2000 hours of use or if there are any issues. Contact us and for faster service, please send us a photo of one of the end of the light tube with the printed markings.

Can it be customized?

Yes, customization is available. OEM & ODM too.

In the color assessment cabinet industry, we bring a wealth of experience and proven technology to the table. With nearly two decades in manufacturing, we’ve provided products to a multitude of companies and have tailored various types of color assessment cabinets to meet specific client needs. Our customer feedback has consistently been outstanding.
